LED-M810RGB2E: 10mm Super RGB LED Lamp
LC LED 10mm RGB LED Lamp Milky Diffused (Common Anode)
|
PRODUCT DESCRIPTION |
|
|
(1) RoHs Compliant
Part |
(4) Selected and
Sorted by Voltage, Color & Intensity Bins |
|
(2) Super Bright RGB
10mm LED |
(5) Sun Light
Viewable LED Lamp |
|
(3) Excellent color
mixing characteristics |
(6) Rugged design
suitable for both indoor & outdoor use |
Absolute Maximum Rating
(Ta = 250C)
|
PARAMETER |
MAXIMUM RATING |
UNITS |
|
DC Forward Current |
30 |
mA |
|
Peak Pulse Forward Current (1) |
100 |
mA |
|
Avg. Forward Current |
30 |
mA |
|
Operating Temperature |
-40
to +85 |
0C |
|
Storage Temperature |
-40
to +100 |
0C |
|
Lead Soldering Temperature |
2600C for 6 seconds |
|
(1) Pulse conditions of 1/10 duty and 10msec
width, for long operating life, max. of 20mA recommended
Electro-optical
Characteristics (Ta = 250C)
|
PARAMETER |
SYMBOL |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
Forward
Voltage (Red) |
VF (Red) |
IF
= 20mA |
1.7 |
|
2.3 |
V |
|
Forward
Voltage (Green) |
VF (Green) |
IF
= 20mA |
3.0 |
|
3.6 |
V |
|
Forward
Voltage (Blue) |
VF (Blue) |
IF
= 20mA |
3.0 |
|
3.6 |
V |
|
Dominant
Wavelength (Red) |
lD |
IF
= 20mA |
460 |
|
475 |
nm |
|
Dominant
Wavelength (Green) |
lD |
IF
= 20mA |
515 |
|
525 |
nm |
|
Dominant Wavelength
(Blue) |
lD |
IF
= 20mA |
625 |
|
635 |
nm |
|
Luminous
Intensity (Red) |
IV |
IF
= 20mA |
|
1,500 |
|
mcd |
|
Luminous
Intensity (Green) |
IV |
IF
= 20mA |
|
2,500 |
|
mcd |
|
Luminous
Intensity (Blue) |
IV |
IF
= 20mA |
|
1,200 |
|
mcd |

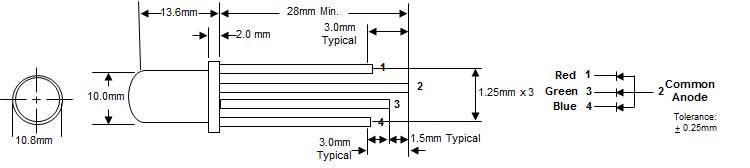

DEVICE DRAWING
|
